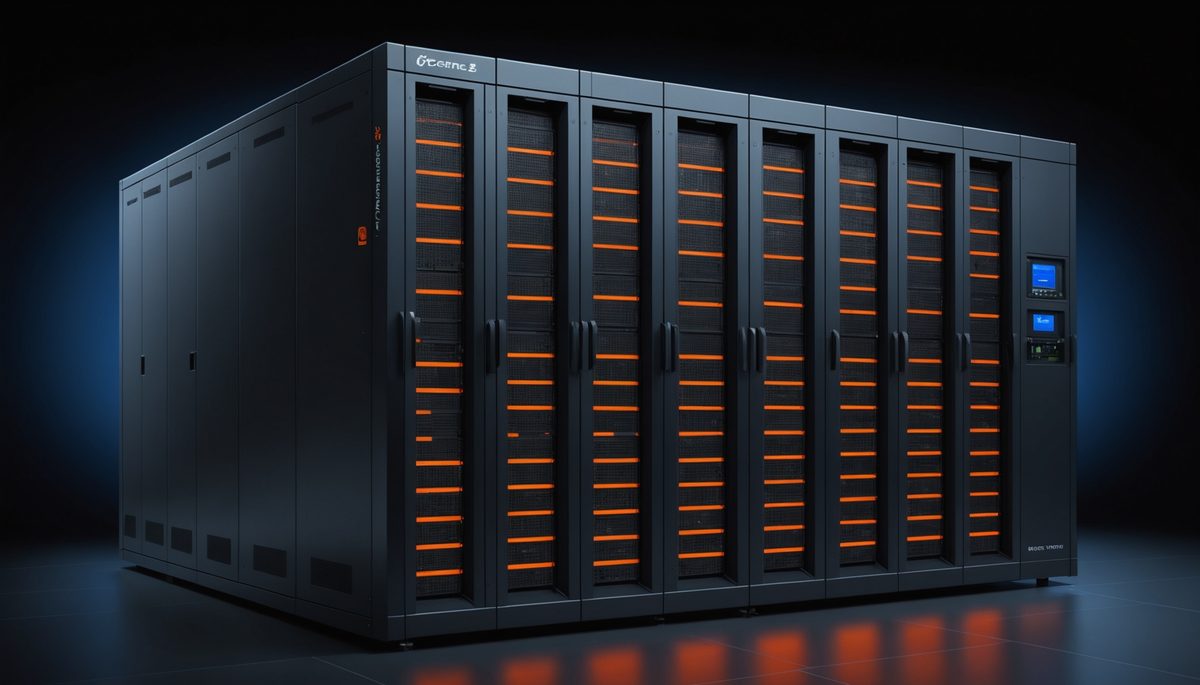

Server Rack Heat Load: Summing Room Heat, Per-Rack Density, and the Cooling Technology It Dictates

Why Every Watt Into a Server Room Becomes a Watt of Heat

A data center heat load calculation is simpler than any comfort-cooling load and yet produces far larger numbers, because there is no envelope, no solar gain, and no occupancy to model: essentially every watt of electrical power that enters the room is dissipated as heat inside it, so the heat load is the power draw.

The physics follow directly from the first law of thermodynamics. IT equipment does no external work; it processes information, and the electrical energy it consumes converts almost entirely to heat within the room. ASHRAE TC 9.9 treats IT electrical-to-thermal conversion as 100% in data-center heat-load analysis. A 10 kW rack releases 10 kW (34,120 BTU/hr) of heat continuously, equivalent to a small home furnace running without pause. There is no conduction through walls to account for, no window gain, no ventilation load in the conventional psychrometric sense. The room heat is the sum of powered equipment. That makes the calculation a summation of electrical loads rather than a psychrometric envelope analysis, but the absolute magnitudes are far higher than any office of the same floor area.

The framework that follows sums four sources (IT equipment, PDU losses, lighting, and miscellaneous), then converts the total into per-rack density and cooling density per floor area. This three-level output is the foundation of the data-center cooling workflow. The per-rack density it produces decides which cooling technology is viable: CRAC for rooms below 10 kW per rack, in-row cooling for 10 to 20 kW, and liquid or immersion for racks above 20 kW. The room total feeds the CRAC Sizing article (which summed a room load and noted IT dominates), the Redundancy article (which applied N+1 to that total), and the Containment and Raised Floor articles (which address cold-side delivery). ASHRAE TC 9.9 defines the thermal classes within which IT equipment must operate. This article is the dedicated per-rack treatment: what each rack generates, what density it represents, and what cooling technology that density requires.

Calculator Inputs: Racks, IT Load, PDU Loss, Lighting, Miscellaneous, Area

The calculator accepts seven inputs and reports total room heat, per-rack density, and cooling density per floor area.

Unit System. Imperial (BTU/hr, ft², tons) or Metric (W/kW, m²). Internal logic is identical; outputs convert to the selected system.

Number of Racks [count]. Total server racks in the room. Integer. Defines the population over which IT heat and density are averaged.

Average IT Load per Rack [kW or BTU/hr]. Average electrical power per rack. From a power audit using branch-circuit or PDU metering on the actual equipment, not nameplate current ratings. Section 7 explains why the audit wins.

PDU Loss Factor [%]. Percent of IT load dissipated as heat in the power distribution units. Modern high-efficiency PDUs: 2 to 4%. Legacy isolation-transformer PDUs: 5 to 8% (Eaton and Schneider Electric PDU datasheets).

Room Lighting Load [W or BTU/hr]. Total lighting heat in the server room. Every watt of lighting power equals a watt of heat; LED fixtures lower this term but do not eliminate it.

Miscellaneous/Ancillary Load [W or BTU/hr]. KVM switches, out-of-band management systems, network gear, and cable infrastructure not captured in the rack IT load. Typically 1 to 3% of IT load.

Server Room Floor Area [ft² or m², optional]. Net floor area, used for cooling density per area. A planning input; the heat totals are independent of floor area.

The calculation:

Q_IT       = N × Q_rack                        [IT heat load]
Q_PDU      = Q_IT × (L_PDU / 100)             [PDU heat loss]
Q_total    = Q_IT + Q_PDU + Q_lighting + Q_misc [total room heat]
Q_per_rack = Q_total / N                       [per-rack density]
Cooling density = Q_total / A_floor            [W/m² or BTU/hr·ft²]

Density tiers from per-rack output:

< 5 kW/rack     — LOW:       standard room CRAC
5–10 kW/rack    — MODERATE:  CRAC + hot/cold aisle containment
10–20 kW/rack   — HIGH:      in-row cooling or rear-door heat exchangers
> 20 kW/rack    — VERY HIGH: direct liquid cooling or immersion

The calculator does not account for: rack inlet temperatures, hot spots, containment effectiveness, airflow paths, transient compute bursts, UPS battery heat, chilled-water plant losses, PUE, redundancy design, liquid-cooling heat transfer, or non-uniform load distribution. It is a sizing reference, not a thermal model.

The Four Heat Sources and Why IT Is 90 to 98 Percent

The room heat load is the sum of four sources, and IT equipment so dominates (90 to 98 percent) that the other three are a small correction, but a correction worth making.

Q_total = Q_IT + Q_PDU + Q_lighting + Q_misc

Q_IT      = N × Q_rack        (IT equipment, 90–98%)
Q_PDU     = Q_IT × L_PDU      (power distribution loss, 2–8% of IT)
Q_lighting                    (lighting heat, per fixture wattage)
Q_misc                        (KVM/management/network/cabling, 1–3%)

Source by source: IT equipment (servers, storage, switches) converts all electrical input to heat and anchors the total at 90 to 98%. PDU units lose 2 to 8% of IT power as heat in transformer windings, rectifiers, and conductors; modern units running at 40 to 60% of rated load reach their peak efficiency and fall near the low end of that range. Lighting adds a small but calculable load, because every watt of LED or fluorescent fixture becomes a watt of room heat. Miscellaneous gear (KVM switches, management ports, patch panels) adds 1 to 3%.

Unlike an office load (where people, solar gain, envelope conduction, and ventilation can each rival the IT load), a data center is almost pure electrical power dissipation. There is no envelope term, no solar term, no latent occupancy load in the conventional sense. The room heat equals the powered equipment. That produces absolute loads that overwhelm office-level comfort calculations: a 156 kW data room is routine, while a 5,000 ft² (465 m²) office rarely exceeds 20 kW of internal gain.

Why still sum the non-IT terms despite IT dominance? At a 156 kW room load, the 4% non-IT correction is 6.3 kW, roughly a full server rack's heat output. PDU loss alone at 4% of 150 kW equals 6.0 kW (20,472 BTU/hr), a real CRAC increment. Omitting it understates the room load and leaves a gap in the cooling plant. Per ASHRAE TC 9.9 and Uptime Institute Global Data Center Survey 2024: sum all four sources; use the power-audit value for Q_IT, not nameplate.

Worked proportions (matching the calculator's worked example):

Q_IT 150.0 kW, Q_PDU 6.0 kW, Q_lighting 0.44 kW, Q_misc 0.30 kW
Q_total = 156.74 kW
IT share = 150.0 / 156.74 = 95.7% ≈ 96%

Per-Rack Density: The Number That Picks the Cooling Technology

The most consequential output is not the room total but the per-rack density in kilowatts, because that single number decides whether room air cooling works or whether the racks need in-row or liquid cooling.

Q_per_rack = Q_total / N    [kW per rack]

The room total sizes the plant (how many kW of cooling to install). Per-rack density picks the technology (how to deliver it). A 156 kW room could be 20 racks at 7.8 kW each (air-cooled, containment feasible) or 4 racks at 39 kW each (liquid mandatory): same total, completely different technology. The two decisions are separate and require different numbers from the same calculation.

The physics set the air cooling ceiling. Air carries limited heat per unit volume: low density and low specific heat relative to water. At low rack density, a room-level CRAC can push sufficient cold air past rack inlets before it warms appreciably. At high rack density, the airflow volume needed to cool the rack exceeds what the supply side can deliver to the inlet without significant mixing with hot exhaust. Above roughly 20 kW per rack, mixing in the cold aisle is severe enough that rack inlet temperatures violate the ASHRAE TC 9.9 A1 to A4 class envelopes even with containment. At that point, liquid cooling, which has far higher specific heat and no mixing path, becomes necessary.

Per Uptime Institute Global Data Center Survey 2024: per-rack density is the primary technology-selection metric, not room total. The air cooling practical ceiling runs near 10 kW without containment and near 20 kW with in-row assistance. Above 20 kW, liquid. The density is the technology-selection number, not the room kW.

Worked: 156.74 kW / 20 racks = 7.84 kW per rack. MODERATE tier. CRAC plus hot/cold aisle containment is the correct technology; in-row and liquid cooling are unnecessary at this density.

The Cooling Technology Ladder: CRAC to In-Row to Liquid

Per-rack density maps to a ladder of cooling technologies, each viable up to a density threshold, above which the next rung becomes necessary.

Per-rack density	Tier	Cooling approach
< 5 kW	LOW	Standard room CRAC
5–10 kW	MODERATE	CRAC + hot/cold aisle containment
10–20 kW	HIGH	In-row cooling or rear-door heat exchangers
> 20 kW	VERY HIGH	Direct liquid cooling or immersion

Rung by rung: at low density (below 5 kW), standard room CRAC alone pushes cold air to rack inlets without special provisions. At moderate density (5 to 10 kW), CRAC remains viable but hot/cold aisle containment becomes necessary to prevent exhaust recirculation from contaminating supply air — the Containment article addresses that boundary in detail. At high density (10 to 20 kW), in-row cooling units placed between racks capture hot exhaust at the source, or rear-door heat exchangers mount directly on the rack back and absorb heat before it enters the room. At very high density (above 20 kW), direct liquid cooling or full immersion replaces air; air can no longer carry the heat concentration required.

Why the rungs exist: each technology delivers cold to the rack inlet only up to a density ceiling. Beyond that ceiling, hot exhaust recirculates into the cold supply (for air-based systems), or the airflow volume needed to cool the rack exceeds the delivery capacity of the room or in-row system. Each successive rung brings the cooling medium closer to the heat source: from room air, to cold aisle containment, to between-rack units, to the chip itself.

The density trend shapes the ladder's relevance. GPU and AI server racks drawing 30 to 80 kW (NVIDIA H100/H200 reference designs) sit well above the air ceiling. Open Compute Project Open Rack v3 hyperscale designs target 15 to 25 kW and incorporate liquid-cooling provisions. The industry is climbing the ladder as compute density rises. Do not over-invest in liquid for a 5 kW room; do not force room CRAC onto a 30 kW rack.

Nameplate versus Measured: Why the Power Audit Wins

The IT load entered into the calculator should be the measured power from a power audit, not the equipment nameplate, because nameplate reflects maximum design current and overstates real load by a wide margin, resulting in over-designed cooling.

Nameplate: maximum design current (UL/safety rating, worst case)
Measured:  actual steady-state power from a power audit

Typical real-load fractions of nameplate: enterprise workloads run at 40 to 60% of nameplate under normal utilization (Uptime Institute Global Data Center Survey 2024). High-utilization GPU and HPC clusters run at 70 to 90% under sustained training or simulation loads (NVIDIA H100/H200 power profiles). The gap exists because nameplate covers the maximum possible hardware configuration plus a safety margin; real servers rarely approach maximum draw simultaneously.

The oversizing penalty is concrete. Sizing by nameplate over-provisions cooling by 30 to 50%. Oversized CRAC units run at partial load, where coefficient of performance is lower. That wastes capital on larger units and raises operating PUE by running those units inefficiently at part-load conditions.

The PDU is the best audit source. Modern intelligent PDUs (Eaton, Schneider Electric) report per-outlet real power, aggregate rack draw, and historical peak simultaneously. Branch-circuit monitoring at the PDU input gives equivalent data for legacy deployments without per-outlet metering. The audit is the correct input; the power-tag value is a procurement and safety number, not a heat-load input.

The GPU exception: AI racks sustain high utilization under training loads, reaching 70 to 90% of nameplate. For those racks, nameplate and measured converge more closely; still verify with PDU data rather than assuming nameplate accuracy.

PDU efficiency varies with load: PDUs run least efficiently at 10 to 20% of rated load and best near 40 to 60%. If the room will grow to higher IT load, do not assume today's PDU loss percentage when sizing for a load level where efficiency characteristics change.

Average versus Peak Density: The GPU Rack Problem

The room average density can hide a cooling problem, because a few very-high-density racks need their own cooling solution regardless of what the room averages to.

The averaging trap: a room averaging 9 kW per rack looks like a MODERATE room, well within air cooling range. But if it contains 18 racks at 6 kW and 2 racks at 40 kW, the average conceals the 40 kW racks entirely.

18 racks × 6 kW  = 108 kW
 2 racks × 40 kW =  80 kW
Total             = 188 kW
Average           = 188 / 20 = 9.4 kW/rack  (MODERATE)

The 40 kW racks (VERY HIGH) need liquid cooling regardless of the room average. Those two GPU racks produce 80 kW concentrated into two rack footprints; room air cooling cannot deliver sufficient cold to those inlets at any CRAC configuration.

Size high-density racks separately. Identify the peak-density racks (GPU, AI, HPC) and size their cooling to their actual density (liquid: direct-to-chip or immersion). Size the remaining racks to their density (air: CRAC and containment). The room total feeds the aggregate plant; the per-rack density by zone feeds the technology selection for each area.

Per Uptime Institute Global Data Center Survey 2024 and NVIDIA H100/H200 reference design documentation: mixed deployments (enterprise racks alongside a GPU cluster) are increasingly common. GPU racks at 30 to 80 kW hide inside a moderate average. Design to the density distribution, not just the room mean; high-density racks require targeted liquid cooling regardless of the overall average.

How Rack Density Climbed: From 2 kW to 40 kW

The density tiers have shifted upward over a decade. A rack power that once defined high density is now below the enterprise average, and the cooling infrastructure has had to climb the technology ladder to keep up.

2010s baseline:          2–4 kW/rack
2024 enterprise average: 8–15 kW/rack  (Uptime Global Data Center Survey 2024)
Hyperscale / OCP:        15–25 kW/rack (Open Compute Project Open Rack v3)
AI / GPU (H100/H200):    30–80 kW/rack (NVIDIA reference designs)

Five kW per rack was considered HIGH in 2010. In 2024, 5 kW sits below the enterprise average and well into room-CRAC territory without containment concerns. The tiers moved; the technology followed. Infrastructure designed for 5 kW racks cannot accommodate a later refresh to 15 or 25 kW without a cooling plant upgrade.

What drove the increase: denser servers pack more compute into the same rack unit height; GPU and AI accelerators draw dramatically more power per compute module; rack consolidation (more servers per rack to reduce floor footprint) concentrates load. Each factor pushes the density curve upward.

The infrastructure response mirrors the technology ladder. As density climbed from 2 to 10 kW, operators added hot/cold aisle containment to standard CRAC rooms. As density climbed from 10 to 20 kW, in-row units filled the gaps between racks. As AI compute pushed racks to 30 to 80 kW, direct liquid cooling moved from niche application to mainstream planning assumption.

Per Open Compute Project and Uptime Institute: design for the density trajectory, not just today's load. A room built to cool 5 kW racks cannot easily accommodate a 20 kW refresh without significant cooling plant investment. Plan power and cooling headroom for density growth.

Cooling Density per Floor Area and the PUE Plant Multiplier

Two derived numbers extend the room total: cooling density per floor area, used for airflow and CFD planning, and the PUE plant multiplier, which scales the IT heat up to the full facility load.

Cooling density = Q_total / A_floor    [W/m² or BTU/hr·ft²]

The cooling density per area is the heat concentration the room floor must support. It feeds raised-floor airflow planning (the Raised Floor article) and serves as an input to CFD models that predict temperature distributions across the room. Higher W/m² indicates denser heat release and may indicate CFD is necessary to confirm airflow delivery before construction.

Worked example:

156,740 W / 65 m² = 2,411 W/m²   (2,411 × 0.317 = 764.3 ≈ 765 BTU/hr·ft²)
65 m² × 10.764 = 699.7 ≈ 700 ft²

At 2,411 W/m² (765 BTU/hr·ft²), this room is in the standard raised-floor airflow range; conventional plenum tile selection and containment suffice without CFD at this density.

The PUE plant multiplier: Q_total is IT-side heat only, the heat the room cooling (CRAC or CRAH) must remove from the raised-floor space. The full facility load includes the cooling system's own power: chiller compressors, condenser fans and pumps, cooling tower, UPS conversion losses. ASHRAE 90.4-2022 and Uptime define PUE (Power Usage Effectiveness) as total facility power divided by IT power:

Plant load = Q_total × PUE

Worked (PUE 1.5):

156.74 kW × 1.5 = 235.1 kW plant load
235.1 / 3.517 = 66.8 tons (chilled-water plant + condensing)

The chilled-water plant and condensing must handle approximately 235 kW (67 tons), not the 156.74 kW (44.6 tons) room load. Typical enterprise PUE runs 1.5 to 1.8 (Uptime Global Survey 2024); efficient hyperscale facilities approach 1.1 to 1.2 (ASHRAE 90.4-2022 targets).

Per ASHRAE 90.4-2022: room CRAC sizes to Q_total (IT-side heat). The central plant sizes to Q_total times PUE (50 to 80% more). Confusing these two under-sizes the plant.

Worked Example: Twenty 7.5-kW Racks to a 156-kW Room Load

A mid-sized colocation room with 20 server racks, each drawing 7.5 kW on audit. PDU loss factor 4%. Lighting load 440 W. Miscellaneous load 300 W. Floor area 65 m² (700 ft²).

Step 1. Total IT heat load:

Q_IT = 20 × 7.5 = 150.0 kW   (150.0 × 3,412 = 511,800 BTU/hr)

Step 2. PDU heat loss:

Q_PDU = 150.0 × 0.04 = 6.0 kW   (6.0 × 3,412 = 20,472 BTU/hr)

Step 3. Lighting and miscellaneous:

Q_lighting = 0.44 kW   (1,501 BTU/hr)
Q_misc     = 0.30 kW   (1,024 BTU/hr)

Step 4. Total room heat load:

Q_total = 150.0 + 6.0 + 0.44 + 0.30 = 156.74 kW
        = 156.74 × 3,412 = 534,797 BTU/hr ≈ 535,000 BTU/hr
        = 156.74 / 3.517 = 44.57 ≈ 44.6 tons cooling required

Step 5. IT share:

150.0 / 156.74 = 95.7% ≈ 96%   (IT dominates, consistent with the 90–98% range)

Step 6. Per-rack density:

Q_per_rack = 156.74 / 20 = 7.84 kW/rack

Step 7. Density tier:

7.84 kW falls in 5–10 kW range → MODERATE
Cooling approach: standard CRAC with hot/cold aisle containment

Step 8. Cooling density per floor area:

156,740 W / 65 m² = 2,411 W/m²   (2,411 × 0.317 = 764.3 ≈ 765 BTU/hr·ft²)
Standard raised-floor airflow range; CFD not required at this density.

Step 9. N+1 redundancy overlay:

For N+1 on 156.74 kW, two viable configurations:
  Option A: 2 × 160 kW CRAC  — each unit carries full load on failure; remaining = 160 kW ≥ 156.74 ✓
  Option B: 3 × 80 kW CRAC   — lose one: 2 × 80 = 160 kW remaining ≥ 156.74 ✓
  Reject:   1 × 160 kW        — no spare; room heat exceeds remaining capacity on failure

Step 10. PUE plant load:

At PUE 1.5: 156.74 × 1.5 = 235.1 kW plant load ≈ 235 kW (66.8 tons)
The chilled-water plant and condensing size to 235 kW, not 156.74 kW.

Result summary: 156.74 kW room load (535,000 BTU/hr, 44.6 tons), per-rack 7.84 kW MODERATE, 2,411 W/m² (765 BTU/hr·ft²). CRAC plus containment is the correct technology for this density. N+1 requires 2 × 160 kW or 3 × 80 kW; the plant sizes to 235 kW at PUE 1.5.

Density Tier and Redundancy Overlay

Density tier and redundancy address two distinct decisions from the same calculation. Per-rack density picks the cooling technology type. The room total drives the unit count for redundancy. Both come from this calculator's output, but they use different numbers.

Density tier interpretation. The 7.84 kW/rack MODERATE tier identifies CRAC plus hot/cold aisle containment as the appropriate technology. If density were higher in the same room with the same count:

Same 20 racks, 12 kW/rack (240 kW total): HIGH → in-row or rear-door heat exchangers
Same 20 racks, 25 kW/rack (500 kW total): VERY HIGH → liquid cooling or immersion

The tier changes the technology type, not just the capacity. In-row or liquid cooling at the same room total (156.74 kW) is not wrong in heat-removal terms, but it is over-engineered and over-capitalized for 7.84 kW racks. Match technology to density.

Redundancy overlay from room total. N+1 calculation:

Load: 156.74 kW
Option A: 2 × 160 kW — remaining after failure = 160 kW ≥ 156.74 ✓
Option B: 3 × 80 kW  — remaining after failure = 160 kW ≥ 156.74 ✓
Reject:   1 × 160 kW — no spare; single failure exceeds remaining capacity

Option B (3 × 80 kW) provides more granularity for part-load efficiency; Option A (2 × 160 kW) reduces unit count and simplifies maintenance. Both satisfy N+1. The choice is a design and procurement decision, not a heat-load calculation.

Per Uptime Institute Tier Standard and the CRAC Redundancy article: per-rack density selects the cooling technology type; room total sizes the unit count for N+1 or 2N. Apply both; they are separate decisions that happen to use different outputs from the same heat-load calculation.

Application Boundaries: Hot Spots, Liquid Cooling, UPS Heat, Transients

The calculator is scoped to room-level air-cooled heat-load summation, per-rack density, and cooling density per area. Several important data-center thermal analyses fall outside this scope.

Rack inlet temperatures and hot spots. This is a sizing reference, not a thermal model. It does not predict rack inlet temperatures, airflow distribution, or hot spots within the room. Those require CFD analysis; the Containment and Raised Floor articles address delivery-side design.

Containment effectiveness. The calculator assumes heat is removed but does not model how well physical containment separates supply and exhaust streams. The Hot Aisle Containment Efficiency calculator quantifies that metric.

Liquid cooling above 20 kW/rack. The model computes air-cooled room load from electrical inputs. Direct liquid cooling (DLC) and full immersion have fundamentally different heat-transfer characteristics: fluid flow rates, secondary loop sizing, and heat exchanger design replace CRAC unit selection. Above 20 to 30 kW/rack, liquid-cooling design differs entirely from what this calculator addresses.

UPS and battery heat. Large UPS systems and their battery rooms add separate thermal loads, distinct from PDU distribution losses. This term is not included in the four-source model.

Chilled-water plant and condensing. Q_total is the IT-side room load. The chilled-water plant, cooling tower, condensing capacity, and pumps form a separate, larger load scaled by PUE (Section 10).

Redundancy. N+1, 2N, or 2N+1 design is applied on top of Q_total as an engineering decision (Section 12 and the Redundancy article), not computed here.

Transient compute bursts. AI training and batch-compute jobs create transient peaks above the steady-state average. Size cooling for the expected sustained peak, not the time-average, where the peak is thermally significant.

Non-uniform rack distribution. The model assumes uniform rack load across all N racks. Real rooms have zones of different density; Section 8 addresses the averaging trap for mixed AI/enterprise deployments.

Per ASHRAE TC 9.9 and Uptime Institute: room-level air-cooled heat-load summation is the calculator scope. Rack inlet temperatures, containment effectiveness, liquid cooling above 20 kW/rack, UPS heat, plant load, PUE, redundancy, transient bursts, and non-uniform distribution require separate analysis with qualified data-center engineers.
