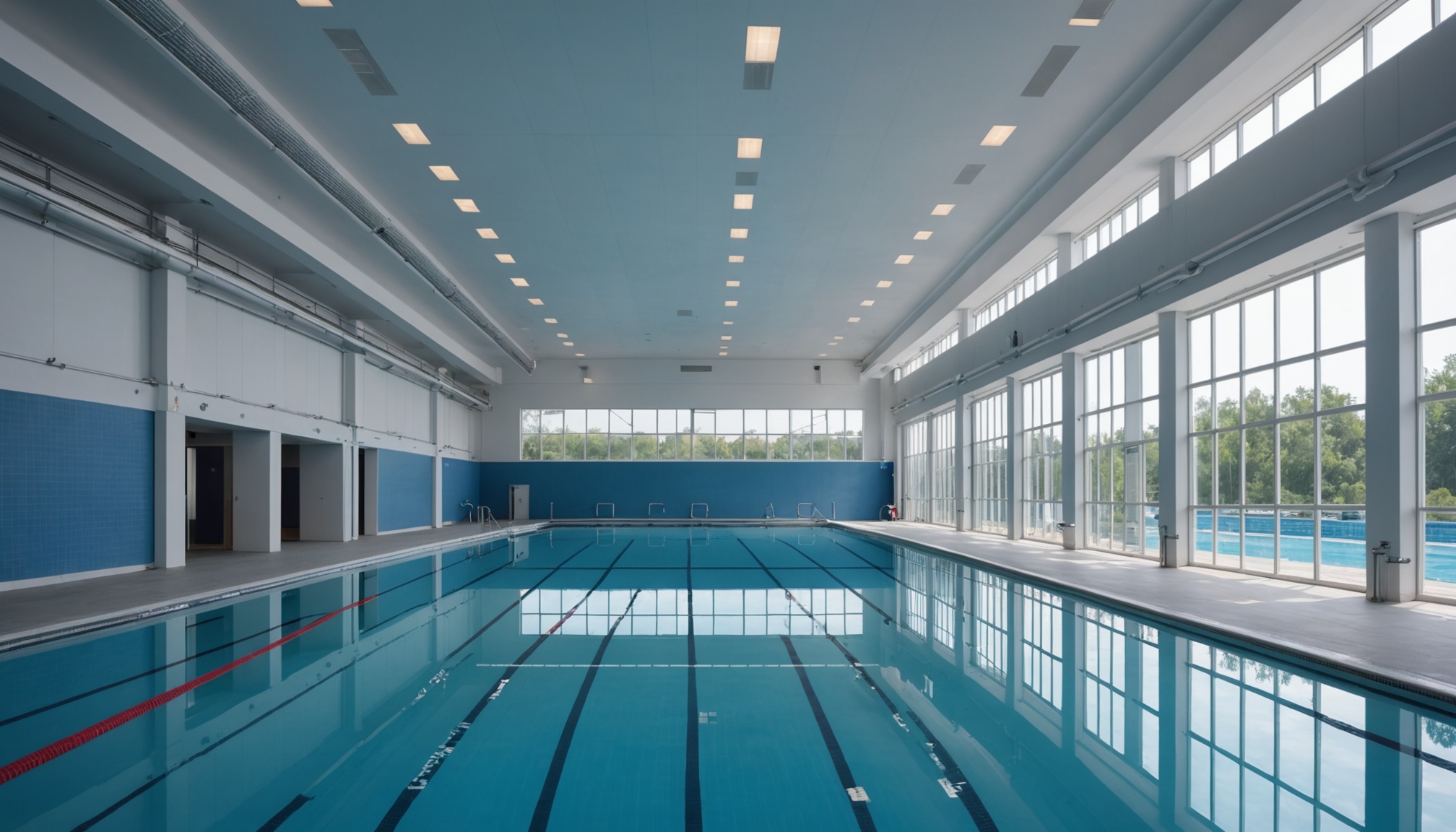

Indoor Pool Dehumidification per ASHRAE Chapter 6: Evaporation Equation, Activity Factors, and Manufacturer Equipment Selection

Pool Evaporation Equation per ASHRAE Chapter 6: ER = 0.1 × A × AF × (P_water − P_air)

Pool dehumidification load is dominated by water evaporation from the exposed pool surface, calculated per ASHRAE Handbook HVAC Applications 2023 Chapter 6 Equation 2 — the natatorium industry's standard methodology adopted by all major dehumidifier manufacturers including Seresco, PoolPak, Dectron, and Desert Aire. The equation quantifies moisture transfer from the pool water surface to room air as a function of surface area, activity-driven agitation, and vapor pressure differential between the water surface and room air. Unlike residential infiltration-based latent load calculations, natatorium methodology treats the pool as a continuous, saturated evaporation source operating 24 hours per day.

The ASHRAE Chapter 6 evaporation equation:

ER (lb/h) = 0.1 × A × AF × (P_water − P_air)

Where ER = evaporation rate [lb/h]; A = pool water surface area [ft²]; AF = activity factor per ASHRAE Table 2, dimensionless, ranging 0.5 to 2.0; P_water = saturated vapor pressure at pool water surface temperature [in Hg]; P_air = partial vapor pressure of room air [in Hg]; 0.1 = empirical mass-transfer coefficient per ASHRAE Chapter 6. The SI equivalent per Seresco Natatorium Design Manual: ER (kg/h) = 0.0457 × A [m²] × AF × (P_water [kPa] − P_air [kPa]). Latent load conversions: Q_latent (BTU/hr) = ER (lb/h) × 1,061 BTU/lb (latent heat of vaporization at 75°F / 24°C); Q_latent (W) = ER (kg/h) × 670 Wh/kg. Per PoolPak Humidity Control Calculations and Seresco Natatorium Design Manual, pool evaporation represents 60–80% of total natatorium latent load, far exceeding residential infiltration and ventilation contributions. Building sensible heat ratio (SHR) drops to 0.30–0.50 for natatoriums, well below the 0.65–0.80 residential range, mandating specialized dehumidification equipment rather than standard variable-speed air conditioning sized via SHR matching. This calculator applies ASHRAE Chapter 6 Equation 2 with manufacturer-validated Activity Factor selection and vapor pressure lookup from steam tables, outputting evaporation rate (lb/h, kg/h), latent load (BTU/hr, kW), and required dehumidifier capacity for direct manufacturer catalog selection.

Calculator Inputs: Pool Area, Water Temperature, Room Air Temperature, Relative Humidity, Activity Factor

The calculator processes five inputs per ASHRAE Chapter 6 variables identified in the Seresco, PoolPak, and Dehumidified Air Solutions design manuals.

Input 1: Pool Water Surface Area [ft² or m²] — the exposed, uncovered water surface only. Typical ranges: residential indoor pool 200–600 ft² (18.6–55.7 m²); hotel pool 500–1,500 ft² (46.5–139.4 m²); YMCA recreation pool 1,500–3,000 ft² (139.4–278.7 m²); 6-lane competition pool 4,000–5,000 ft² (371.6–464.5 m²); Olympic pool approximately 13,500 ft² (1,254 m²).

Input 2: Pool Water Temperature [°F or °C] — varies by pool use: competition pool 78–80°F (25.6–26.7°C) per FINA standard; recreational pool 80–82°F (26.7–27.8°C); hotel pool 82–84°F (27.8–28.9°C); therapy pool 86–94°F (30–34.4°C); whirlpool/spa 100–104°F (37.8–40°C) per CDC public spa guidance.

Input 3: Room Air Dry-Bulb Temperature [°F or °C] — per Seresco design recommendation, maintain 2–4°F (1.1–2.2°C) above pool water temperature. This reduces the evaporation driving force by raising room air partial vapor pressure relative to pool surface vapor pressure, and prevents glazing condensation. Hotel pool example: 82°F (27.8°C) water calls for 84–86°F (28.9–30°C) room air.

Input 4: Room Air Relative Humidity [%] — per Seresco and PoolPak design rules: summer design at 60% RH (humidity tolerance acceptable, condensation risk low at warm outdoor temperatures); winter design at 50% RH (mandatory to prevent condensation on cold envelope surfaces, especially glazing). Equipment is typically sized for the 50% RH winter condition, which often governs glazing specification; summer 60% RH governs total dehumidification capacity due to outdoor air contribution.

Input 5: Activity Factor (AF) per ASHRAE Chapter 6 Table 2 (full detail in the next section).

Calculator outputs: evaporation rate (lb/h, kg/h); latent load from evaporation (BTU/hr, kW); spectator/occupant latent load; outdoor air ventilation latent load; total natatorium latent load; required dehumidifier capacity at design conditions (BTU/hr, kW, lb/h moisture removal); and suggested manufacturer category (residential dehumidifier versus commercial natatorium unit).

Conversion factors per NIST: 1 lb/h = 0.4536 kg/h; 1 in Hg = 3.386 kPa = 0.4912 psia; 1 BTU/hr = 0.000293 kW; 1 ft² = 0.0929 m²; 1 CFM = 0.4719 L/s.

The engineering distinction from residential Latent Heat Load methodology is fundamental: residential calculation uses Q = 0.68 × CFM × ΔW (airflow-based moisture mass balance for infiltration, ventilation, and internal sources); this pool calculator uses Q = ER × 1,061 (evaporation from water surface per ASHRAE Chapter 6 Equation 2). Pool water provides a continuous, saturated evaporation source; residential homes provide intermittent moisture sources.

Activity Factor Selection: Residential 0.5, Hotel 0.8, Public 1.0, Wave Pool 1.5–2.0 per ASHRAE Table 2

Activity Factor (AF) captures the effect of water agitation from bathers on evaporation rate per ASHRAE Chapter 6 Table 2. A quiet pool surface evaporates at a baseline rate; aggressive splashing and mechanical surface disturbance can double or triple evaporation per Seresco Natatorium Design Manual Table 2.

Activity Factor table per ASHRAE Handbook HVAC Applications 2023 Chapter 6 Table 2 and Seresco Natatorium Design Manual:

Pool Type / Use	Activity Factor	Application
Residential (private home)	0.5	Single-family indoor pool, limited daily use
Elderly swim / Aquafit / Physical Therapy	0.65	Low-impact, low-splash activities
Swim Meet (competitive event)	0.65	Lane swimming, minimal splashing
Hotel pool (guest use)	0.8	Moderate daily occupancy, mixed activities
Institutional / School pool	0.8–1.0	Class instruction, varied programs
Public / YMCA / Recreation	1.0	Active family swim, daily heavy use
Whirlpool / Hot Tub	1.0	Continuous turbulence from jets
Wave Pool	1.5–2.0	Mechanical wave generation, high surface disturbance
Water Park / Slides	2.0+	Maximum splash, spray, surface aeration

Selection methodology per Seresco Natatorium Design Manual: identify the primary pool use category; choose the AF representing peak occupied conditions, not average occupancy; per Seresco Section 2.2.1.1, "to evaluate the dehumidification load during swim meets an Activity Factor of 0.65 is used to calculate the evaporation rate." Conservative practice: use the higher AF if pool use varies (a hotel pool that occasionally hosts swim lessons should use AF 1.0 instead of 0.8).

A critical caveat from ACHR News April 2018 quoting Paul Stewart, Director of Sales, Marketing, and Service at Desert Aire: "Owners and contractors think they can change these [evaporation rate] values just as they would do in comfort cooling applications." Activity Factor is empirical, derived from ASHRAE research over decades, and cannot be adjusted downward to reduce equipment cost. Reducing AF arbitrarily produces an undersized dehumidifier, leading to indoor RH exceeding the 60% setpoint, condensation on cold envelope surfaces (especially glazing), mold growth risk per ASHRAE Standard 160-2021, and aggressive equipment corrosion from chloramines.

Worked example of AF impact on evaporation rate for a hotel pool: 1,250 ft² (116 m²) water surface, 80°F (26.7°C) pool water, 82°F (27.8°C) room air, 60% RH, driving force ΔP = 0.37 in Hg (1.25 kPa) per Section 5:

• AF 0.5 (residential): ER = 0.1 × 1,250 × 0.5 × 0.37 = 23 lb/h (10.4 kg/h)
• AF 0.8 (hotel): ER = 0.1 × 1,250 × 0.8 × 0.37 = 37 lb/h (16.8 kg/h)
• AF 1.0 (public): ER = 0.1 × 1,250 × 1.0 × 0.37 = 46 lb/h (20.9 kg/h)
• AF 1.5 (wave pool): ER = 0.1 × 1,250 × 1.5 × 0.37 = 69 lb/h (31.3 kg/h)

The 3× variation between residential and wave pool AF translates directly to a 3× equipment capacity requirement and corresponding capital cost difference. Correct AF selection is the single most impactful design decision per Seresco Natatorium Design Manual.

Pool covers during unoccupied hours reduce evaporation 60–90% per Dehumidified Air Solutions Natatorium Design Guide. Cover schedule must be modeled separately; uncovered occupied hours dominate peak load even where covers are used off-hours. Per Dehumidified Air Solutions Table 4, a pool with 50 lb/hr (22.7 kg/h) evaporation rate and 2,000 cooling-season hours annually realizes $2,350 in savings through dehumidifier heat recovery to electric pool water heating.

Vapor Pressure Determination: Saturation at Pool Surface and Partial Pressure at Room Conditions

The evaporation driving force is the difference between water surface vapor pressure (saturated at water temperature) and room air partial vapor pressure (calculated from room dry-bulb temperature × relative humidity). Both values are determined from steam tables per ASHRAE Fundamentals 2021 Chapter 1 psychrometric data.

Saturated vapor pressure at pool water temperature per ASHRAE Fundamentals 2021 Chapter 1 and NIST steam tables (pool water surface assumed at 100% RH — exposed water is saturated at its surface temperature):

Water Temperature	P_water (in Hg)	P_water (kPa)
78°F (25.6°C)	0.95	3.22
80°F (26.7°C)	1.03	3.49
82°F (27.8°C)	1.10	3.73
84°F (28.9°C)	1.18	3.99
86°F (30°C)	1.25	4.24
90°F (32.2°C)	1.42	4.81
94°F (34.4°C)	1.61	5.45
100°F (37.8°C)	1.93	6.53
104°F (40°C)	2.18	7.38

Room air partial vapor pressure formula: P_air = P_sat(T_room) × RH, where P_sat(T_room) = saturated vapor pressure at room dry-bulb temperature from steam table lookup.

Room saturated vapor pressure reference:

Room Dry-Bulb	P_sat (in Hg)	P_sat (kPa)
80°F (26.7°C)	1.03	3.49
82°F (27.8°C)	1.10	3.73
84°F (28.9°C)	1.18	3.99
86°F (30°C)	1.25	4.24

Worked vapor pressure calculation for the hotel pool example: pool water 80°F (26.7°C), P_water = 1.03 in Hg (3.49 kPa) saturated; room air 82°F (27.8°C) at 60% RH, P_sat = 1.10 in Hg (3.73 kPa), P_air = 1.10 × 0.60 = 0.66 in Hg (2.24 kPa); driving force ΔP = 1.03 − 0.66 = 0.37 in Hg (1.25 kPa). Per Seresco Natatorium Design Manual: "vapor pressure values can be found in steam tables." For pool design in SI units, ASHRAE 2019 Handbook HVAC Applications Chapter 6 provides parallel tables in kPa.

A caveat from PoolPak Humidity Control Calculations: pool water surface temperature may differ from bulk pool water temperature by 1–2°F (0.6–1.1°C) due to surface cooling from evaporation. Conservative design uses bulk water temperature (typically warmer); precise modeling adjusts for surface cooling effect.

Critical engineering relationship per Seresco Natatorium Design Manual: increasing room air temperature 2°F (1.1°C) above pool water temperature reduces evaporation by 20–25% by raising P_air and thereby reducing ΔP. This is the engineering rationale behind all manufacturer recommendations to set room temperature 2–4°F (1.1–2.2°C) above water temperature: energy savings from lower dehumidifier sizing outweigh added space heating cost.

Total Latent Load: Evaporation Plus Spectator Activity Plus Outdoor Air per Seresco Design Manual

Total natatorium latent load per Seresco Natatorium Design Manual sums three sources: (1) pool evaporation per Sections 2–5 methodology; (2) spectator and bather latent contributions; (3) outdoor air ventilation latent load.

Three-component moisture balance per Seresco Section 2.2.1:

Q_latent_total = Q_evaporation + Q_occupants + Q_outdoor_air

Component 1: Pool Evaporation (dominant, 60–80% of total per PoolPak). Q_evap (BTU/hr) = ER (lb/h) × 1,061, per ASHRAE Chapter 6 Equation 2 methodology.

Component 2: Spectator/Bather Latent per ASHRAE Chapter 6 Table 3 and Seresco Section 2.2.1:

Activity Level	Latent Rate (lb/h/person)	Latent Rate (BTU/hr/person)	g/h/person
Quietly seated	0.155	164	70
Moderate activity	0.205	218	93
Enthusiastic	0.250	265	113
Highly enthusiastic	0.530	562	240

Occupant categorization per Seresco: spectators viewing a swim meet — quietly seated (0.155 lb/h); hotel guests poolside — moderate activity (0.205 lb/h); swim lesson participants — moderate activity (0.205 lb/h); aquafit/exercise class — enthusiastic (0.250 lb/h); wave pool spectators — highly enthusiastic (0.530 lb/h). Active swimmers in the water count toward Activity Factor, not toward separate occupant latent load.

Component 3: Outdoor Air Ventilation Latent per ASHRAE Standard 62.1-2022 Section 6.2. Outdoor air rates per ASHRAE 62.1-2022 Table 6.2.2.1 for Natatorium/Swimming Pool: pool area 0.48 CFM/ft² (2.44 L/s per m²); deck area 0.06 CFM/ft² (0.305 L/s per m²); spectator seating 7.5 CFM per person (3.54 L/s) plus 0.06 CFM/ft² area component. Per Seresco quoting general code language: "codes generally require that each spectator be provided with 15 CFM of outdoor air" — verify with local jurisdiction for IMC, IBC, or state-specific code.

Outdoor air latent load calculation:

Q_OA_latent (BTU/hr) = 0.68 × CFM_OA × ΔW_grains

Where ΔW = W_outdoor − W_indoor (humidity ratio difference in gr/lb).

Seasonal design split per Seresco Section 2.2.2: "in the summer, the outdoor air tends to be a load, but since it is warm outside, condensation is not a concern, so it is recommended to model the space at 60% RH. In the winter, there is significant risk of condensation, so it is recommended to model at 50% RH. The outdoor air in winter almost always is a dehumidification credit, making this easily achievable." Summer outdoor air adds latent load (hot humid air); winter outdoor air assists dehumidification (cold dry air absorbs moisture). Equipment is sized for the summer worst case, which typically governs in humid climates.

Per Seresco Natatorium Design Manual: "internal load in a natatorium is the evaporation from the pool water and continuously wet surfaces. In a natatorium this represents the majority of the total dehumidification load." Wet deck surfaces, splash zones, and continuously wet walls add 5–15% to the baseline evaporation estimate per Seresco engineering practice.

Heat recovery opportunity per Dehumidified Air Solutions: dehumidifier compressor heat can be diverted to pool water heating, recovering 30–50% of dehumidification energy as useful water heat. Per DAS Table 4 economic analysis: a 50 lb/hr (22.7 kg/h) evaporation rate pool running 2,000 cooling-season hours can save $2,350 annually if the dehumidifier supplements electric water heating. Return on investment under one year typical per Dehumidified Air Solutions.

Hotel Indoor Pool Worked Example: 1,250 sq ft Water, 80°F Pool, 82°F Room, 7-Ton Dehumidifier Selection

Project: Hotel indoor pool, new construction in Miami, FL. Pool 50 ft × 25 ft (15.24 × 7.62 m), water surface 1,250 ft² (116.1 m²), depth 4–8 ft graduated. Adjacent deck 1,000 ft² (92.9 m²) with patio seating. Glazing 30% of envelope. Design occupancy: 30 guests typical, 50 peak.

Design conditions per Seresco Natatorium Design Manual and ASHRAE Chapter 6: pool water temperature 80°F (26.7°C) per recreational standard; room air temperature 82°F (27.8°C) per "2°F above water" guidance; design RH 60% summer (Miami climate condition); Activity Factor 0.8 per ASHRAE Table 2 for hotel pool.

Step 1: Pool evaporation per ASHRAE Chapter 6 Equation 2.

Vapor pressure values from Section 5 steam table: P_water at 80°F (26.7°C) = 1.03 in Hg (3.49 kPa), saturated at water surface; P_sat at 82°F (27.8°C) room = 1.10 in Hg (3.73 kPa); P_air at 82°F (27.8°C), 60% RH = 1.10 × 0.60 = 0.66 in Hg (2.24 kPa); driving force ΔP = 1.03 − 0.66 = 0.37 in Hg (1.25 kPa).

Evaporation rate:

ER = 0.1 × 1,250 × 0.8 × 0.37 = 37.0 lb/h (16.8 kg/h)

Evaporation latent load:

Q_evap = 37.0 × 1,061 = 39,257 BTU/hr (11.50 kW)

Step 2: Occupant latent load per ASHRAE Chapter 6 Table 3 and Seresco methodology.

30 hotel guests at moderate activity (pool deck, casual movement): Q_occupant = 30 × 0.205 × 1,061 = 6,525 BTU/hr (1.91 kW). Per Seresco: count guests on deck or observing the pool, not active swimmers in water (swimmers fold into AF).

Step 3: Outdoor air ventilation latent per ASHRAE Standard 62.1-2022 and code.

Outdoor air rates: pool area 1,250 × 0.48 = 600 CFM (283 L/s); deck area 1,000 × 0.06 = 60 CFM (28 L/s); occupants 30 × 7.5 = 225 CFM (106 L/s). Total OA = 885 CFM, rounded to 900 CFM (425 L/s) per Seresco conservative practice.

Miami summer design conditions per ASHRAE Fundamentals 2021 Chapter 14: outdoor 92°F dry-bulb / 78°F wet-bulb (33.3°C / 25.6°C); W_outdoor at 78°F dew point = 145 gr/lb (20.7 g/kg). Indoor pool room conditions at 82°F (27.8°C), 60% RH: W_indoor = 98 gr/lb (14.0 g/kg); ΔW = 145 − 98 = 47 gr/lb (6.7 g/kg).

Q_OA_latent = 0.68 × 900 × 47 = 28,764 BTU/hr (8.43 kW)

Step 4: Total natatorium latent load.

Q_latent_total = 39,257 + 6,525 + 28,764 = 74,546 BTU/hr (21.84 kW)

Component shares: evaporation 52.7%; occupants 8.8%; outdoor air 38.6%. Evaporation dominates per Seresco "majority of total" guidance, with Miami's humid outdoor air contributing a substantial 38.6% due to high outdoor humidity ratio.

Step 5: Sensible cooling load for context. Lighting at 4 W/ft² × 2,250 ft² (pool + deck) = 30,710 BTU/hr (9.00 kW); occupant sensible 30 × 250 = 7,500 BTU/hr (2.20 kW); envelope conduction 10,000 BTU/hr (2.93 kW); solar gain through 30% glazing 15,000 BTU/hr (4.39 kW). Total sensible approximately 63,000 BTU/hr (18.5 kW). Building SHR = 63,000 / (63,000 + 74,546) = 0.458 — within the 0.30–0.50 natatorium range. Dedicated natatorium dehumidifier required; standard residential AC equipment inadequate at this SHR.

Step 6: Equipment selection per manufacturer catalogs.

Required dehumidifier moisture removal capacity: 74,546 / 1,061 = 70.3 lb/h (31.9 kg/h), equivalent to approximately 6.2 ton dehumidification.

Manufacturer options: Seresco NE-090 (approximately 80 lb/h capacity at typical natatorium conditions); PoolPak SWHP-085 (approximately 85 lb/h); Dectron NP-080 (approximately 80 lb/h).

Selected: Seresco NE-090, approximately 80 lb/h capacity. Selection margin: 80 / 70.3 = 1.14× (within 1.05–1.30× recommended range per natatorium industry practice per Dehumidified Air Solutions).

Configuration with water heating heat recovery: compressor heat rejection diverted to pool water through heat exchanger, recovering 25–40% of dehumidification energy. For 80 lb/h × 1,061 = 84,880 BTU/hr dehumidification capacity, recoverable heat to pool water: 21,000–34,000 BTU/hr — reducing auxiliary pool heater duty 30–50%.

Capital cost: $25,000–40,000 for NE-090 base equipment; $5,000–8,000 heat recovery option; $3,000–6,000 source-capture exhaust ductwork = $33,000–54,000 total. Annual operating cost: $2,500–4,000 electricity, offset by $1,500–2,500 pool water heating savings per DAS Table 4. Net annual operating cost approximately $1,000–1,500.

Engineering decision: Seresco NE-090 dedicated natatorium dehumidifier with heat recovery, sized 14% above calculated load for capacity margin, integrated source-capture exhaust per chloramines IAQ best practice. This configuration suits hotel guest pools with moderate occupancy variation and Miami's humid climate worst-case design.

Equipment Categories: Dectron NP, Seresco NE, PoolPak per Manufacturer Engineering Manuals

Natatorium dehumidification requires specialized commercial equipment: residential or standard commercial dehumidifiers cannot handle continuous water-evaporation latent loads in the 50–300 lb/h moisture removal range typical of indoor pools.

Category 1: Residential indoor pool dehumidifiers, suitable for small home pools below 600 ft² (56 m²). Standalone units including Aprilaire E130 and Santa Fe Ultra120. Capacity 5–12 lb/h (130–300 pints/day). Cost $2,000–3,500. Applicable to small residential indoor pools, hot tub rooms, and indoor spas with AF 0.5.

Category 2: Light commercial natatorium units for pool areas 500–1,500 ft² (46–139 m²). Wall-mount or ducted package units from Aaon and Munters. Capacity 30–80 lb/h moisture removal. Cost $15,000–30,000. Suitable for hotel pools, small therapy pools, and residential indoor pools above 600 ft².

Category 3: Mid-size dedicated natatorium dehumidifiers for areas 1,500–5,000 ft² (139–465 m²). Floor-mount or rooftop package units from Seresco NE Series, Dectron NP, PoolPak SWHP/MPK, and Desert Aire LG/CA. Capacity 50–200 lb/h moisture removal. Cost $25,000–75,000. Suitable for YMCA recreation pools, hotel main pools, school natatoriums, and small competition pools.

Category 4: Large commercial natatorium units for pool areas above 5,000 ft² (465 m²). Custom-engineered packages from Seresco NW Series, Dectron NL Series, Desert Aire SelectAire, and PoolPak NV. Capacity 200–1,000+ lb/h moisture removal. Cost $75,000–300,000+. Suitable for competition natatoriums, wave pools, water parks, and large fitness club aquatics.

Key manufacturer differentiators:

Seresco NE Series per Natatorium Design Manual: integrated heat pump dehumidification, optional pool water heating heat recovery, modular sizes NE-040 through NE-220 (the numeric suffix denotes moisture removal in lb/h). Specialized chloramines-resistant materials. Cost $25,000–150,000.

PoolPak SWHP/MPK per Humidity Control Calculations: heat pump dehumidification with pool water heating, modular packaged design, sizes from small to Olympic-scale natatoriums. Specified for 24/7 operation reliability.

Dectron NP Series: full dehumidification plus cooling plus heating package with integrated outdoor air handling. Sizes NP-30 through NP-300 (tons). Cost $30,000–200,000.

Desert Aire LG/CA per TB9 application notes: specialized in chloramines management through source-capture exhaust integration. Coastal and saltwater pool corrosion-resistant variants available.

Per ACHR News April 2018 (Paul Stewart, Desert Aire): "The 125-ton, 40,000-cfm, NW-Series rooftop dehumidifier, manufactured by Seresco USA, dehumidifies, cools, and heats the Grapevine, Texas-based Recreation Education and Community (REC) Center's 18,000-square-foot natatorium with factory-installed coils." Per Dehumidified Air Solutions Natatorium Design Guide: equipment selection follows the total latent load calculation from Section 6 methodology; add 10–15% capacity margin for transient peak loads from swim meets or special events. Heat recovery option is mandatory per ROI analysis (under one year payback typical).

Chloramines and Indoor Air Quality: Source Capture Exhaust per Desert Aire TB9 and ACHR News

Natatorium HVAC design extends beyond dehumidification to indoor air quality (IAQ) management. Chloramines — chlorinated disinfection byproducts — accumulate above the water surface and pose health and corrosion risks per CDC, Desert Aire TB9 Interaction of Pool Water and Air Chemistry, and ACHR News April 2018.

Chloramines per CDC and Desert Aire TB9: formed when chlorine reacts with organic matter (sweat, urine, body oils, cosmetics). Three types exist: monochloramine, dichloramine, and trichloramine — the last being most volatile and the primary IAQ concern. Per Desert Aire TB9, chloramines are approximately four times heavier than air, causing them to accumulate at pool deck level just above the water surface. Health effects include eye irritation, respiratory irritation, and asthma triggers per CDC guidance. Equipment effects include aggressive corrosion of metal ductwork, coils, and structural components.

Source capture exhaust per Desert Aire TB9 and ACHR News April 2018 quoting Paul Stewart (Desert Aire): "The common indoor air quality refrain of 'dilution is the solution' applies to poolrooms... With more actively used pools, such as competitive swimming pools, the design must take the extra step of adding a low exhaust system. This system captures the chloramines at the pool deck level because they are heavier than air, and then exhausts them without routing them back to the dehumidifier." Source capture exhaust positioning: 12–18 inches (305–457 mm) above the water surface; wall-mounted or bench-integrated exhaust grilles per RecManagement analysis; independent of main HVAC return ductwork to prevent chloramines recirculation through the dehumidifier.

Two IAQ failure modes per ChloramineConsulting blog series:

Stratification: chloramines accumulate at low level because of their density relative to air; high HVAC returns cannot capture them. Result: persistent poor air quality near the water surface, swimmer complaints, and mold/corrosion potential.

Recirculation: HVAC return positioned low captures chloramines and routes them through the dehumidifier. Per ChloramineConsulting: "Chloramines are very corrosive, and recirculating them is kind of like forcing the PDU [Pool Dehumidification Unit] to chain-smoke 24/7." Result: aggressive equipment corrosion, shortened equipment life, and contaminated air redistributed throughout the space.

Solution per ChloramineConsulting and Desert Aire: source-capture exhaust at deck level plus high-mounted general return for recirculated air. Captures chloramines before they reach the dehumidifier; recirculates cleaner upper-level air only.

Design rule per Recreation Management and ACHR News: independent low-level exhaust handling 30–50% of total natatorium outdoor air rate; exhausted entirely to outside; make-up air introduced at upper level; natatorium maintained at negative pressure relative to adjacent occupied spaces (lobby, locker rooms) to prevent chloramines migration.

Material selection per Desert Aire and Seresco engineering manuals: stainless steel ductwork (304 minimum, 316 for saltwater pools); coated coil fins (epoxy or phenolic coating); sealed motors; corrosion-resistant fasteners. Per ProAC HVAC Considerations: galvanized steel ductwork fails within 5–10 years under chloramines exposure without a proper exhaust strategy. Source-capture exhaust ductwork investment of $3,000–6,000 typical pays back quickly through extended equipment service life of 15–20 years versus 5–10 years.

Per PUPN magazine analysis: natatorium IAQ requires coordinated design among the mechanical engineer, pool operator, and water chemistry management. Single-factor solutions — additional dehumidification alone, or additional outdoor air alone — are typically insufficient.

Design Conditions Selection: 60% RH Summer, 50% RH Winter, Room 2–4°F Above Water Temperature

Natatorium design conditions follow established manufacturer and code guidance. Three primary design parameters drive evaporation rate and equipment sizing.

Design Parameter 1: Room dry-bulb temperature relative to water temperature per Seresco, PoolPak, and Dectron design rules. Standard: room 2–4°F (1.1–2.2°C) above pool water temperature, reducing evaporation driving force ΔP and preventing glazing condensation. Applications: hotel pool 80°F (26.7°C) water calls for 82–84°F (27.8–28.9°C) room; competition pool 78°F (25.6°C) water calls for 80–82°F (26.7–27.8°C) room; therapy pool 88°F (31.1°C) water calls for 90–92°F (32.2–33.3°C) room. Spa exception: at water temperatures of 102°F (38.9°C), occupant comfort takes priority and room air is often maintained at 80–85°F (26.7–29.4°C) rather than following the 2°F-above rule.

Design Parameter 2: Relative humidity setpoint by season per Seresco Natatorium Design Manual. Summer: 60% RH design (higher tolerance; no condensation risk at warm outdoor temperatures). Winter: 50% RH design (mandatory for condensation prevention on cold envelope surfaces, especially glazing). Equipment sizing typically based on summer worst-case latent load; glazing specification governed by winter 50% RH dew point analysis.

Design Parameter 3: Glazing surface temperature management per ASHRAE Standard 90.1-2022. Indoor dew point must remain below glazing inner surface temperature to prevent condensation. At 50°F (10°C) outdoor, glazing inner surface temperature approximately 55–60°F (12.8–15.6°C) with double-pane; indoor dew point at 80°F (26.7°C) / 50% RH = approximately 60°F (15.6°C), which is borderline. Triple-pane low-E argon glazing is the typical natatorium specification for cold climates.

Design Parameter 4: Pool cover schedule per Dehumidified Air Solutions. Covered pool reduces evaporation 60–90%. Cover schedule modeling separates occupied versus unoccupied hours; equipment is sized for peak occupied evaporation, not the daily average. Per DAS Table 4, cover schedule provides operating cost savings without affecting peak-load equipment capacity.

Per Seresco Section 2.2: "outdoor air in winter almost always is a dehumidification credit, making this easily achievable." Combined design check: equipment sized for the maximum of summer and winter latent loads; summer typically dominates due to outdoor air contribution; winter glazing condensation risk drives glazing specification independently of dehumidification capacity.

Application Boundaries: Residential, Hotel, Competition, Therapy, Wave Pools, and Whirlpools

Valid applications for ASHRAE Chapter 6 Equation 2: indoor pools with steady-state operation and known water surface area; pool water 75–104°F (23.9–40°C); ASHRAE Chapter 6 Activity Factor identifiable per Table 2 categories; single-source pool with one main basin.

Application boundaries requiring extended analysis:

(1) Outdoor pools — evaporation depends on wind velocity, solar radiation, and air convection at the pool surface. ASHRAE Chapter 6 Equation 2 applies to indoor conditions only (natural air circulation, 10–30 fpm / 0.05–0.15 m/s air velocity per Seresco). Outdoor pool evaporation per the Carrier 1918 Pratt-Lefler equation includes a wind factor; this is a different methodology entirely.

(2) Whirlpools/hot tubs/spas — high water temperature (100–104°F / 37.8–40°C) increases evaporation 3–5× per ft² versus a swimming pool. AF 1.0 baseline applies; per Seresco methodology, jet aeration adds 10–20% to the baseline. Surface area is typically small (below 100 ft² / 9.3 m²), so total load remains manageable, though the per-area rate is high. Whirlpool latent is often combined into main pool dehumidifier capacity.

(3) Wave pools and water parks — AF 1.5–2.0+ causes dramatic latent load increase. Per Dehumidified Air Solutions, wave pool design requires custom CFD analysis for air distribution; standard Chapter 6 Equation 2 can underestimate peak evaporation by 30–50% when mechanical wave generation is active.

(4) Therapy pools (88–94°F / 31.1–34.4°C water) — elevated water temperature raises P_water substantially, increasing ΔP and evaporation rate. ASHRAE 62.1 ventilation rates are also higher for therapy patient occupancy. Specialized equipment sizing per manufacturer therapy pool line required.

(5) Saltwater pools — salinity slightly lowers P_water versus freshwater pools (Raoult's Law vapor pressure reduction), but the calculation methodology is unchanged. Material selection shifts to 316 stainless and enhanced corrosion-resistant coatings per Section 9.

(6) Competition pools with swim meets — Activity Factor varies: training at AF 0.65; regular swim meet at AF 0.65–0.8; spectator-heavy major events add separate spectator latent per ASHRAE Table 3. Equipment is sized for peak meet conditions per Seresco methodology.

(7) Aquatic centers with multiple pool zones (lap + therapy + leisure + whirlpool) — separate calculation per zone, combined equipment selection per zoning strategy. Multi-zone air distribution per ASHRAE Standard 62.1-2022 ventilation effectiveness factors.

Per ASHRAE Handbook HVAC Applications 2023 Chapter 6: methodology validated for indoor pool applications with natural air circulation. Outdoor pools, mechanical wave-generation pools, and industrial process pools require alternative methodologies per chapter-specific guidance.
